USB Type C Connector with Gen3 24 Pin Dual Row SMT Design

Gen3 USB Type C Electronic Connector Manufacturer for Dual Row SMT

Engineered for compact electronic connection requirements, the gen3 USB type C electronic connector manufacturer for dual row SMT provides a USB 4.0 Type C Gen3 receptacle with 24 pins, a subside structure, and dual row SMT configuration. The CU4C-R241S40-33 features 30 μin gold plating, a 1.40 mm CH, and a 9.92 mm body length. Its construction combines a glass fiber filled thermoplastic insulator rated UL 94V-0, copper alloy contacts, and a stainless steel shell. Electrical performance includes a 5.0 A maximum current rating, 5 V AC maximum voltage rating, 40 mΩ maximum contact resistance, and 100 MΩ minimum insulation resistance. Supported by an experienced electronic connector manufacturer, the product also meets RoHS and REACH requirements and provides durability up to 10,000 cycles. Contact us to discuss your USB Type C connector sourcing requirements.

USB Type C Connector Features

• USB 4.0 Type C Gen3 receptacle with 24 pins.
• Dual row SMT and subside type design.
• 30 μin gold plating on the contact area.
• Stainless steel shell with nickel plating.
• Durability reaches 10,000 cycles.

Contact Us

Strengthen Long Term Connector Durability

The receptacle supports 10,000 cycles with insertion force of 5 N to 20 N and withdrawal force of 8 N to 20 N.

Optimize Stable Electrical Performance

The connector supports 5.0 A maximum current, 5 V AC maximum voltage, and contact resistance of 40 mΩ maximum.

FAQ

What materials are used in the connector?

The connector uses a glass fiber filled thermoplastic insulator, copper alloy contacts, and a stainless steel shell.

What environmental conditions does it support?

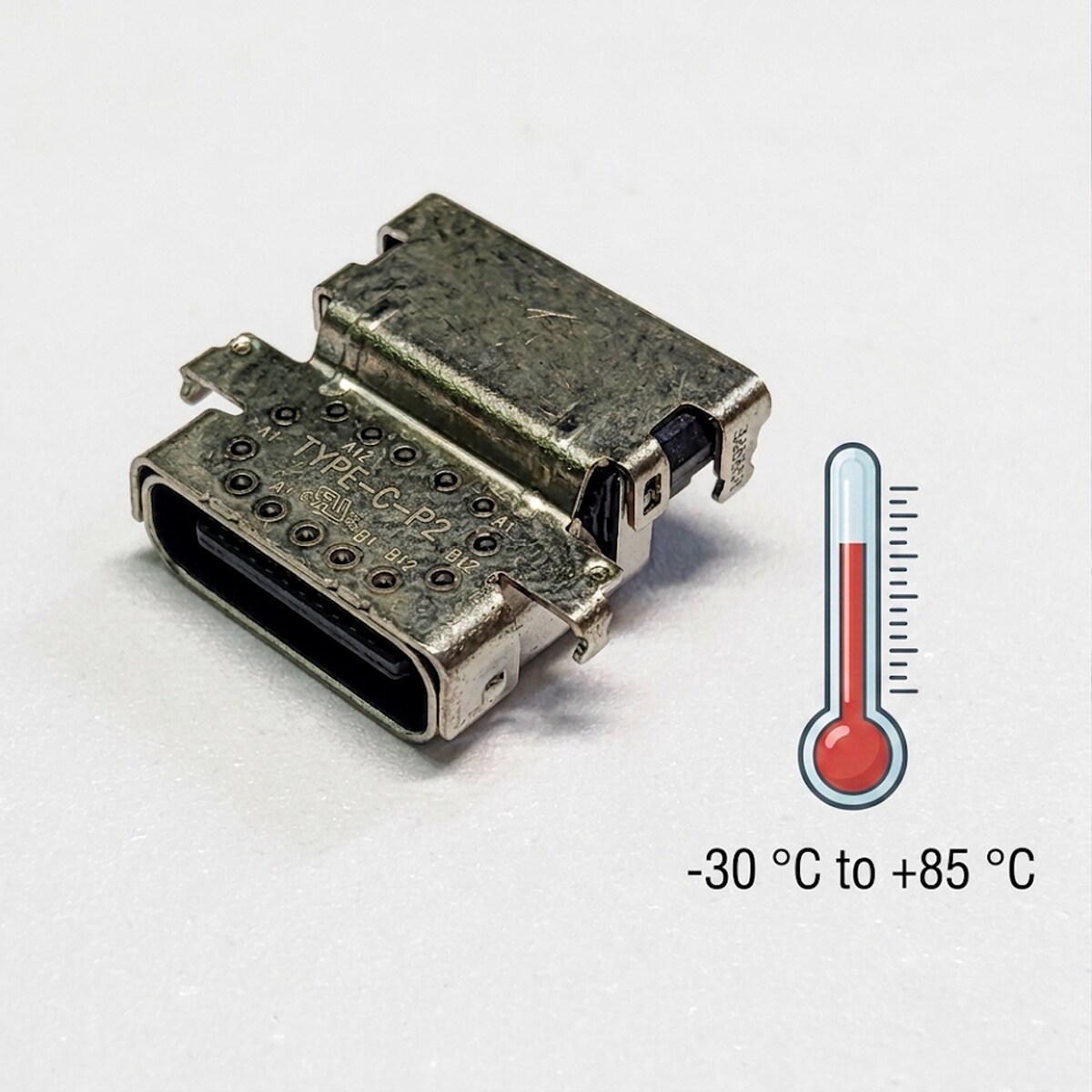

The connector operates from -30 °C to +85 °C and complies with RoHS and REACH requirements.

What is the connector mounting configuration?

The CU4C-R241S40-33 is a 24 pin receptacle with a subside type structure, dual row SMT layout, 1.40 mm CH, and 9.92 mm body length.

Built around integrated design and production resources, Gen3 USB Type C electronic connector manufacturer for dual row SMT supports buyers seeking a USB Type C connector backed by extensive OEM and ODM experience. As an electronic connector manufacturer supported by six manufacturing partners, the group combines R&D, tooling design, plastic injection, terminal stamping, plating, and assembly resources. This supply network supports customization, quality control, delivery capability, and competitive pricing for USB C receptacle requirements. Contact us to discuss your sourcing needs.
